10.1 Inch Industrial IP65 Front Panel PC, Multi Touch Capacitive Touch Screen, I3 10110U, PX01, TPM2.0, 9-36V Phoenix, 2 x COM, HDMI, 2 x LAN, 0 RAM, 0 Storage, Barebone No System
4.3 (138 items)
Limited Time SaleUS$54.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 212363071 | Release Date | 2026/04/06 | List Price | US$36.00 | Model Number | 212363071 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system Model Number: HUNSN PX01 Panel: 10.1" TFT LED panel, IP65 full flat front panel CPU: Intel i3-10110U Processor 4M Cache, up to 4.10 GHz Security: TPM2.0 Memory: 1 x SODIMM DDR4-2666, max. to 32GB RAM Storage: 1 x M.2 2280 SATA SSD, 1 x 2.5" SATA SSD/HDD, support RAID 0/1 I/O: Power Switch, 9-36V 2Pin power supply phoenix connector, 2 x COM COM1/COM2 for RS232/RS422/RS485 optional, HDMI, 2 x LAN, 4 x USB3.0, Audio Expansion: 1 x Mini PCIE slot for WiFi/4G, with sim slot Network Card: 2 x Intel 1000M LAN Speaker: Two 8-ohm 2-watt speaker Cooling System: Aluminum alloy, fanless Dimension: 271.5 x 190 x 53mm Embedded Installation: 262 x 180mm Weight: 2.0kgs Resolution: 1280 x 800 Brightness: 350cd/m2 Viewing Angle: Full angle Ratio: 16 : 9 Touch Screen: Industrial grade multi-touch capacitive touch screen Life Time: More than 50000 Thousand Times Installation: Embedded recommended/Wallmounted/Desktop/Cantilevered etc Working Temperature: 0 ~ 50°C for commercial, -20 °C ~ 60 °C for industrial SSD, surface air flow Working Humidity: 5% ~ 95% non-condensing Power Supply: DC100-240V AC/50-60Hz, 12V5A, DC 9V ~ 36V wide voltage Input, support positive pole and negative electrode connect reversely protection Packing List: HUNSN PX01 Panel PC, Power Supply, Power Cord, Embedded Mounting Clip x4, Warranty Card Function: Support Auto power on, Timing boot, Wake on LAN, PXE boot, Watchdog 0～255 level System Support: Windows 11, Linux Ubuntu etc

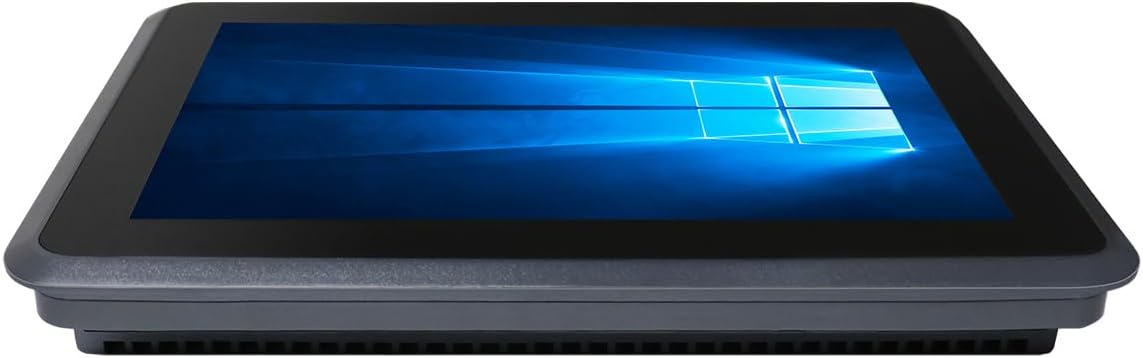

- 10.1 inch tft led industrial grade touch panel pc, front panel protection IP65, multi-touch capacitive touch screen, typical 1280 x 800 resolution, powered by Intel i3 10110u processor, applicable to a wide range of industrial applications, 7 x 24 hours of stable work
- Please note, this is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
- Aluminum alloy fanless passive cooling design, silent solution that’s ultra energy-efficient

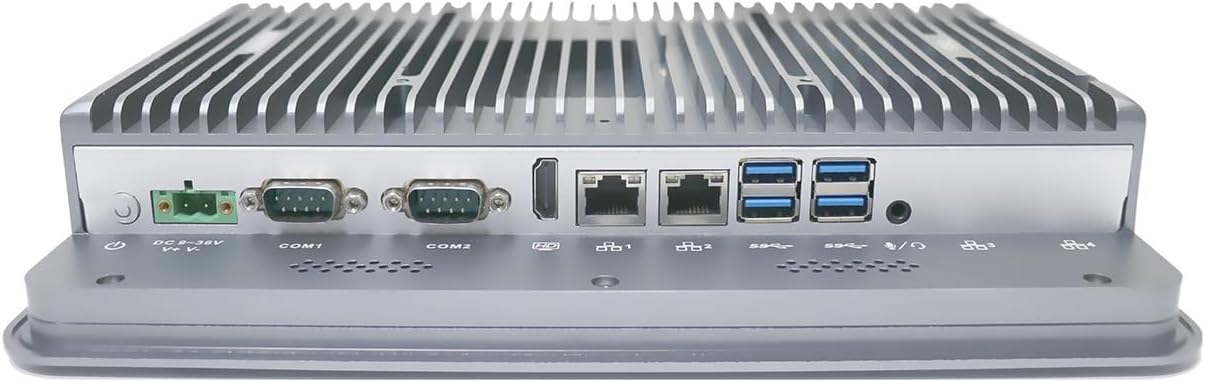

- HUNSN PX01 designed with power switch, 9-36v 2pin power supply phoenix connector, 2 x com com1/com2 for rs232/rs422/rs485 optional, hdmi, 2 x lan, 4 x usb3.0, audio, industrial aesthetic design and reasonable interface layout, support automatically power on after power failure, with mounting embedded buckle kits
- Size at 271.5 x 190 x 53mm, 2.0kgs, 12v5a power supply, with power cord, make sure to use a big brand memory and ssd/hdd with quality assurance, very powerful fanless all in one panel touch pc
| Brand | ANDAQI |
|---|---|
| Color | gray |
| RAM Type | SODIMM |
| Model Name | PX |
| Resolution | 1280 x 800 |
| Style Name | I3 10110U |
| Item Weight | 2 Kilograms |
| Screen Size | 10.1 Inches |
| Aspect Ratio | 16:9 |
| Display Type | LCD |
| Manufacturer | Shen Zhen Shi An Da Qi Ke Ji You Xian Gong Si |
| Memory Speed | 2666 MT/s |
| Model Number | PX01 |
| BuiltIn Media | Power Supply, Power Cord, Embedded Mounting Clip x4, Warranty Card |
| Cooling Method | Fanless |
| Item Type Name | HMI |
| Processor Brand | Intel |
| Processor Count | 2 |
| Processor Speed | 2.1 GHz |
| Total Usb Ports | 4 |
| Video Processor | Intel |
| CPU Model Number | I3 10110U |
| Processor Series | Core i3-10110U |
| Processor Socket | FCBGA1528 |
| Native Resolution | 1280x800 |
| Compatible Devices | Camera,Desktop,Gaming Console,Laptop,Smartphone,Speaker,Tablet |
| Hardware Interface | HDMI |
| Memory Clock Speed | 2.67 GHz |
| Hard Disk Interface | Solid State |
| Graphics Coprocessor | Intel UHD Graphics |
| Graphics Description | Integrated |
| HumanInterface Input | Touch Pad |
| Hard Disk Description | SSD |
| RAM Memory Technology | DDR4 |
| Memory Slots Available | 1 |
| Connectivity Technology | Powerline |
| Graphics Card Interface | Integrated |
| Memory Storage Capacity | 32 GB |
| Ram Memory Maximum Size | 32 GB |
| Specific Uses For Product | Everyday Use |
| Display Resolution Maximum | 1280 x 800 Pixels |
| Total Number of HDMI Ports | 1 |
| Number of Component Outputs | 1 |
