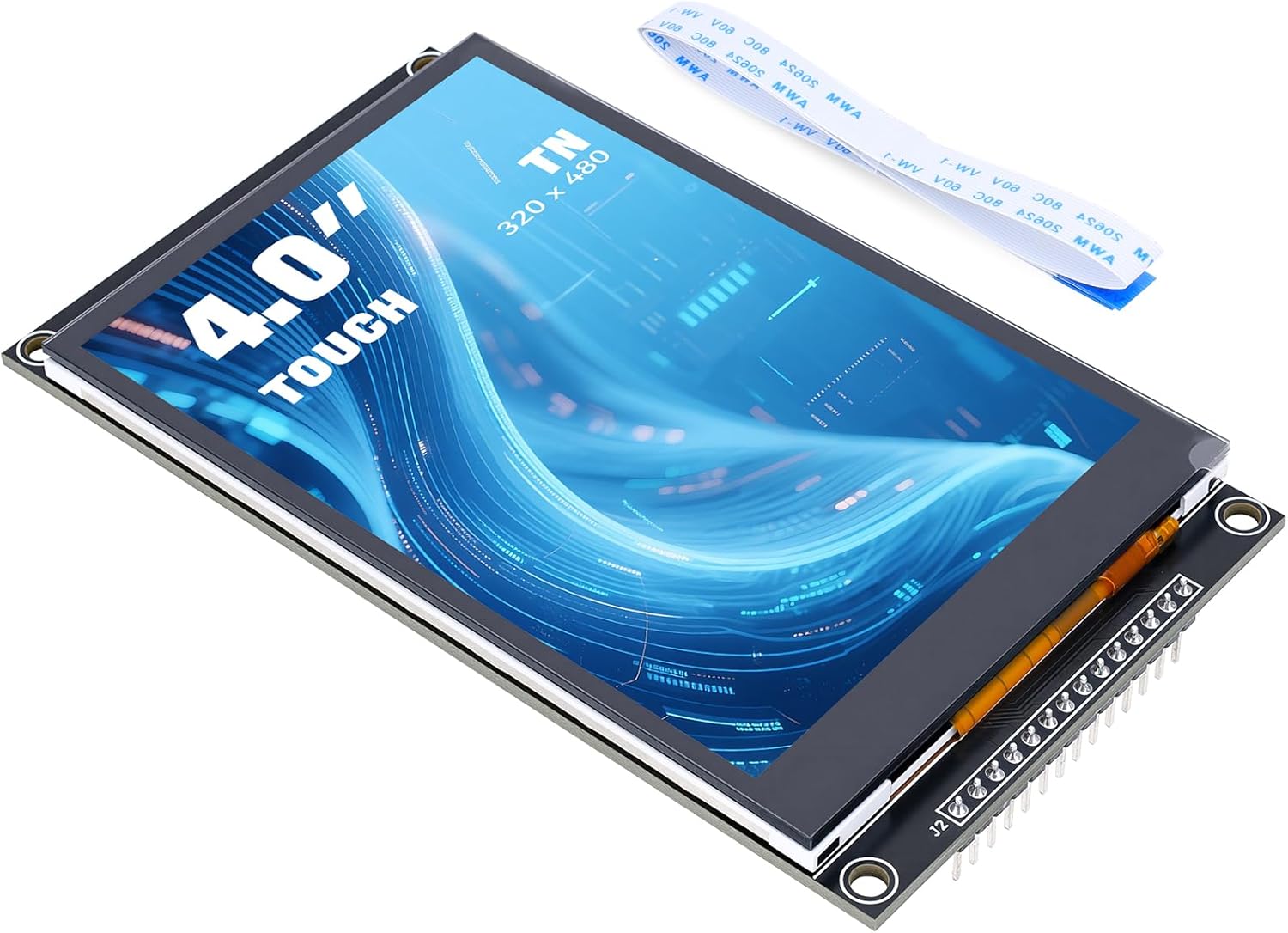

2PCS LCD Display 4.0 Inch 320x480 TN Capacitive Touch Screen Esp32 Display Module SPI Serial ST7796S Driver for Ar duino R3/Mega2560 (Black)
4.1 (47 items)
Limited Time SaleUS$22.80 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 209108380 | Release Date | 2026/03/29 | List Price | US$15.20 | Model Number | 209108380 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
LCD Parameters: Screen Size:4.0 inch Screen Type:TN Resolution:320xRGBx480 (pixels) Active Area (AA area):55.68(W)x83.52(H)(mm) Number of Colors(Max):16.7M Driver IC:ST7796S Display Interface:4-Line SPI Pixel Size:0.174(H)x0.174(mm) View Angle:12 O'CLOCK Brightness(TYP): 300(cd/m2) Backlight Type:White LED*8 Operation Temperature:-10~50(℃) Storage Temperature:-20~60(℃) Electrical Parameters： Working Voltage：5.0 V/3.3V(Recommended to connect to 5V) Backlight Current：103 mA Power：0.5 W Touch Screen Parameters: Touch Active Area:4.0 inch Touch Screen Type:Capacitive Touch Screen Touch Screen Resolution:320x480(pixels) Driver IC:FT6336U Touch Screen Visual Area:55.98(W)x83.82(H)(mm) Communication Interface： IIC Operation Temperature: -20~70(℃) Storage Temperature: -30~80(℃) Size Parameters: TFT Outline Size:60.88±0.2(W)x94.57±0.2(H)x2.5±0.1(D)(mm)(Excluding cables and adhesive backing) Touch Screen Outline Size:60.88±0.1(W)x94.57±0.1(H)x1.35 (D)(mm)(Excluding cables and adhesive backing) Module Outline Size:Have Touch Screen:60.88(W)x108.0(H)x14.80(D)(mm)(including Pin Header) Other Parameters： Interface：14P 2.54mm spacing Header and 0.5mm spacing FPC seat Package include： 1 x 4.0” touch screen 1 x FPC cables 1 x Plastic protective box
- LCD display parameters: 4.0-inch TN capacitive touch screen, resolution 320x480, 65K colors, rich display colors, brightness 300 (cd/m²), display interface: 4-Line SPI
- ESP32 display module: using ST7796S driver, onboard level conversion circuit, compatible with 5V and 3.3V MCU; using four-wire SPI serial bus, saving I/O pins
- Advantages: Newly upgraded to capacitive touch for Ar duino screen module. Compared with resistive screen, it is more convenient to use and more accurate to touch
- Humanized design: The module input supports 2.54-pin interface and FPC expansion interface, equipped with Micro TF card slot for easy storage and expansion; provides rich example learning programs (ESP32/STM32/Ar duino R3 & Mage2560/C51/CH32), provides underlying driver technology support, online update information, and supports long-term stable work
- After-sales service: If you have any after-sales questions about the product, please contact us, we are online 24 hours a day, looking forward to your visit
| Brand | Ransanx |
|---|---|
| Color | 2pcs 4.0 Inch |
| Item Weight | 106 Grams |
| Screen Size | 4 Inches |
| Aspect Ratio | 1.27:1 |
| Manufacturer | Ransanx |
| Model Number | LCD Display |
| Screen Finish | Capacitive Touch Screen |
| Compatible Devices | Ar duino R3, Ar duino Mega2560, and other 5V and 3.3V MCU single-board computers compatible with the 4-wire SPI serial bus |
| Item Dimensions D x W x H | 4.72"D x 3.94"W x 1.57"H |
| Display Resolution Maximum | 320x480 |
