5pcs KBPC5010 50A 1000V High-Power Single Phase Diode Bridge Rectifiers Metal Case

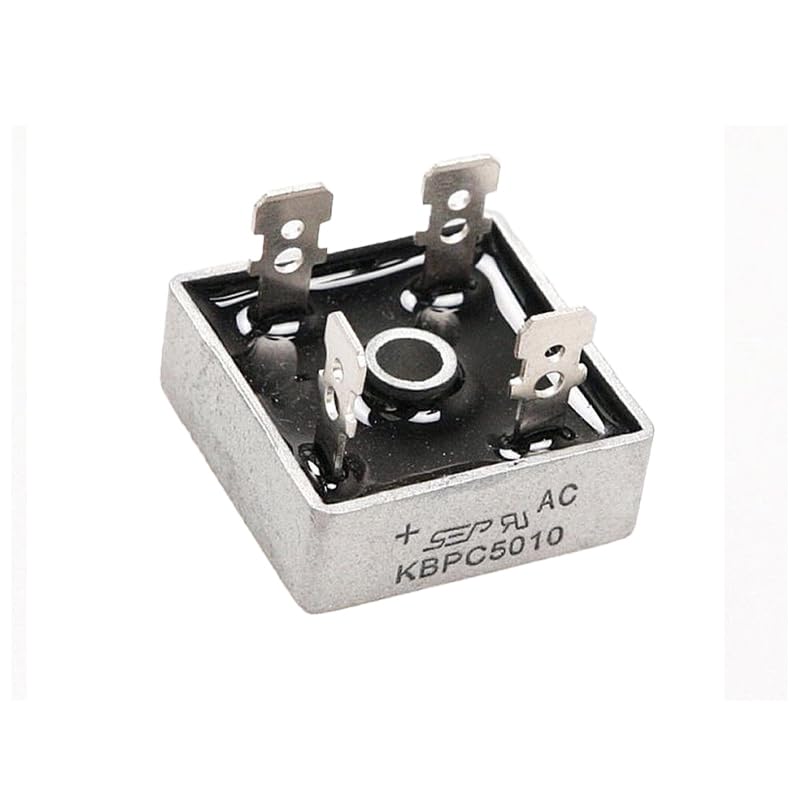

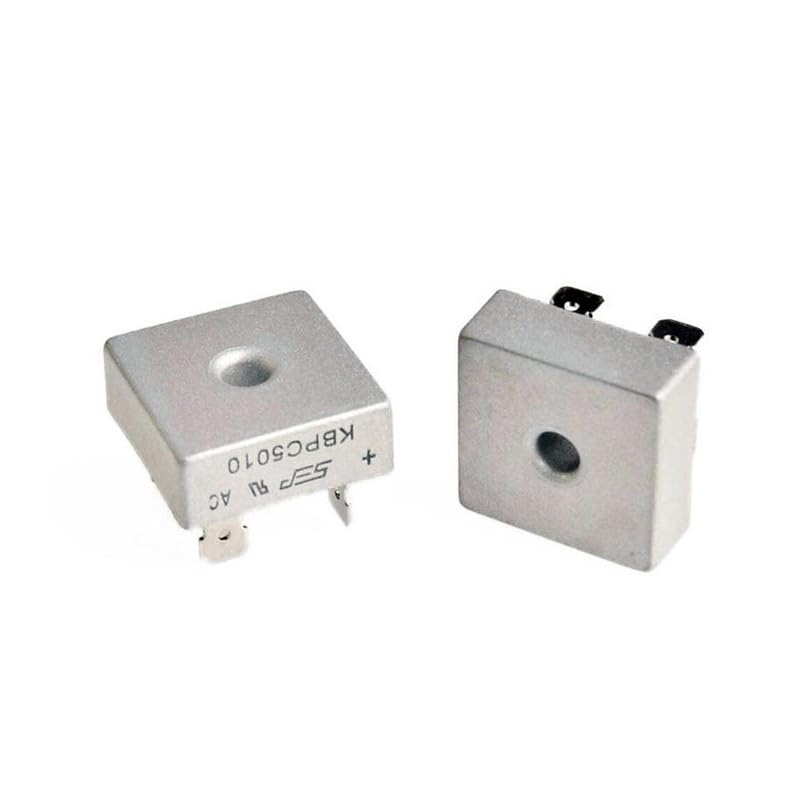

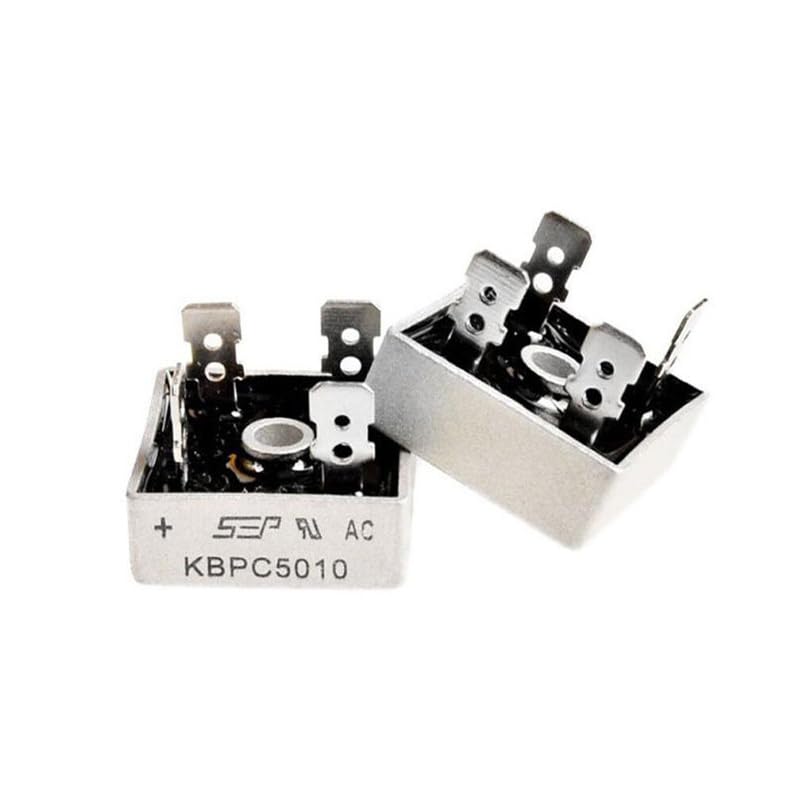

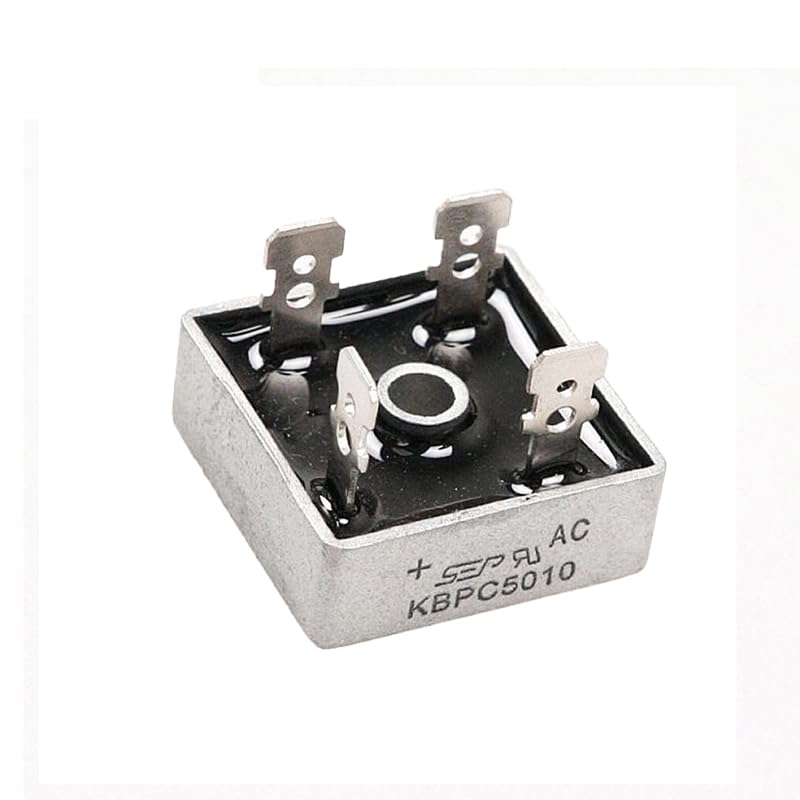

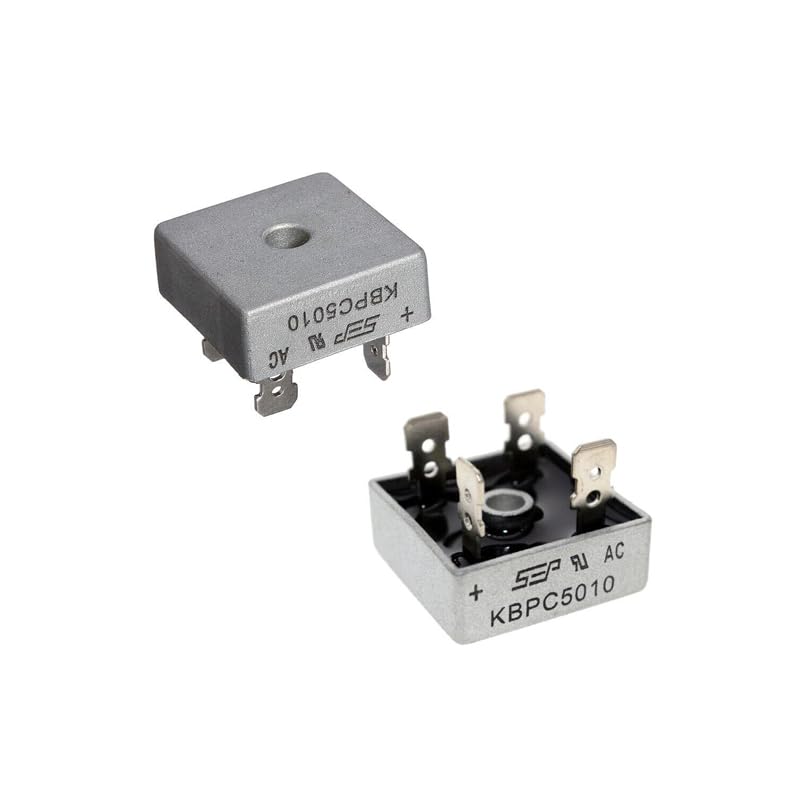

KBPC5010 50A 1000V High-power Single Phase Diode Bridge Rectifiers Metal Case This KBPC5010 50A 1000V silicon bridge rectifier features an electrically-isolated metal case for maximum heat dissipation, surge overload rating of 400A, and low voltage drop. KBPC5010 Features:UL listed under the Recognized Component Index, file number E142814The plastic material used carries Underwriters Laboratory flammability recognition 94V-0Surge overload ratings to 400 amperesElectrically isolated metal case for maximum heat dissipationCase to terminal isolation voltage 2500VElectrical Specifications:Maximum repetitive peak reverse voltage (VRRM): 1000VMaximum RMS bridge input voltage (VRMS): 700VMaximum DC blocking voltage (VDC): 1000VMaximum average forward rectified output current at TA=40 C (IF(AV)): 50APeak forward surge current single sine-wave superimposed on rated load (JEDEC Method) (IFSM): 400ATypical thermal resistance per element (ReJA): 2.5 degrees C/WOperating junction and storage temperature range: -55 to +150 CMaximum instantaneous forward voltage drop per leg at 25A (VF): 1.0VMaximum DC reverse current at rated TA=25 C (IR): 10uADC blocking voltage per element TA=125 C (IR): 500uA Package includes: 5x (5 pieces) KBPC5010 50A 1000V Metal Case Single Phase Diode Bridge Rectifier Link to online manufacturer's datasheet and wiring diagram

• Maximum average forward rectified output current: 50A；Maximum repetitive peak reverse voltage: 1000V.
• ALLECIN KBPC5010 Bridge Rectifier Diode - commonly used electronic components.
• Features & Advantages: High pressure resistance ; High current carrying capacity ; Less energy loss.
• Widely Application: KBPC5010 Bridge Rectifier Diode is widely used in Power System, Inverters, Welding Equipment applications.
• Humanized packaging for easy storage and use. # Printed markings for easy identification.
