Ag Poppet Poineer Style ISO5675 Body 1/2" to Flat Face ISO16028 Body 1/2" Hydraulic Quick Connect&Disconnect Coupler Adapter Set,Replace SAE/EAS-500
4.7 (16 items)
Limited Time SaleUS$40.60 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211823885 | Release Date | 2026/04/06 | List Price | US$27.06 | Model Number | 211823885 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

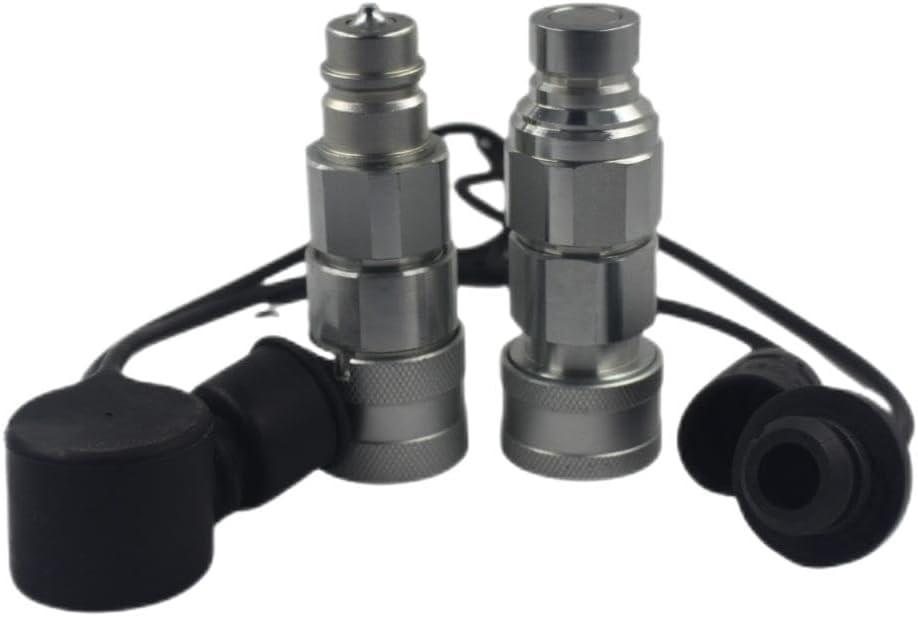

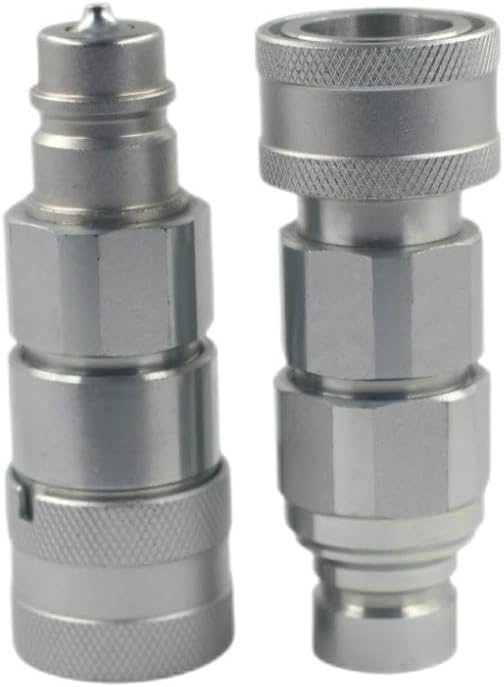

Applications: ISO5675 to ISO16028 Ag Poppet Poineer Style to Flat Face Hydraulic Quick Connect Coupler Adapter Set Replace SAE/EAS-500 Non Spill Hydraulic Quick Coupling Body Size: 1/2″ Features & Benefits1.Easily adapt farm implements to use with your skid steer2.One end has a skid steer quick coupler (1/2” Body) interchanges with ISO 16028 Flat Face couplers3.The other end has the poppet valve Pioneer style coupler that interchanges with all ISO 5675 couplers4.Includes dust caps to keep your couplers clean5.Heavy Duty DesignLocking sleeve helps prevent accidental disconnectsWhat's Included:(2) Female Couplers(2) Male Couplers
- 1.<b>→Size:</b>High Flow 5/8 Body ISO16, 3/4’’ NPT Female Thread
- 2.<b>→Rate Flow:</b>Heavy Duty 5000 PSI with Rated Flow (GPM) 20 Gallon per minute
- 3.<b>→Standard Seal Material:</b>NBR with Rated Temperature -4℉ to 250℉.Steel construction, zinc plated finished and hardened nipples and sleeves and solid barstock construction for maximum resistance to damage from hydraulic and mechanical shock.
- 4.<b>→Design：</b>Heavy Duty valve design, it can resistance damage from high flow and the pressure of impulse that providing advanced performance.Valve Design Allows Single Hand Connection and Disconnection.
- <b>→Interchangeable with: </b><br>Parker FE Series: FEM-622-12FP, FEM-621-12FP<br>Faster FFH Series: FFH10 34NPT M, FFH10 34NPT F<br>Snap Tite 74 Series:74N10-12F, 74C10-12F<br>Stucchi FIRG Series :800801011, 800801010<br>Dixon HT Series:HT5F6, 5HTF6 <br>DNP PLT4 Series:FF-HPG-10-12N-NPT, FF-HPG-10-12C-NPT
| UPC | 747086981945 |
|---|---|
| Size | 1-Set ISO5675 to ISO16028 1/2" |
| Color | Silver with Black accents |
| Brand Name | Undercarriage |
| Unit Count | 1.0 Count |
| Thread Size | 1/2 |
| Thread Type | NPT |
| Manufacturer | FL-TRACK |
| Model Number | LX-5675-16028NPT-New |
| Material Type | Alloy Steel |
| Connector Type | Nipple |
| Exterior Finish | zinc plated |
| Number of Pieces | 2 |
