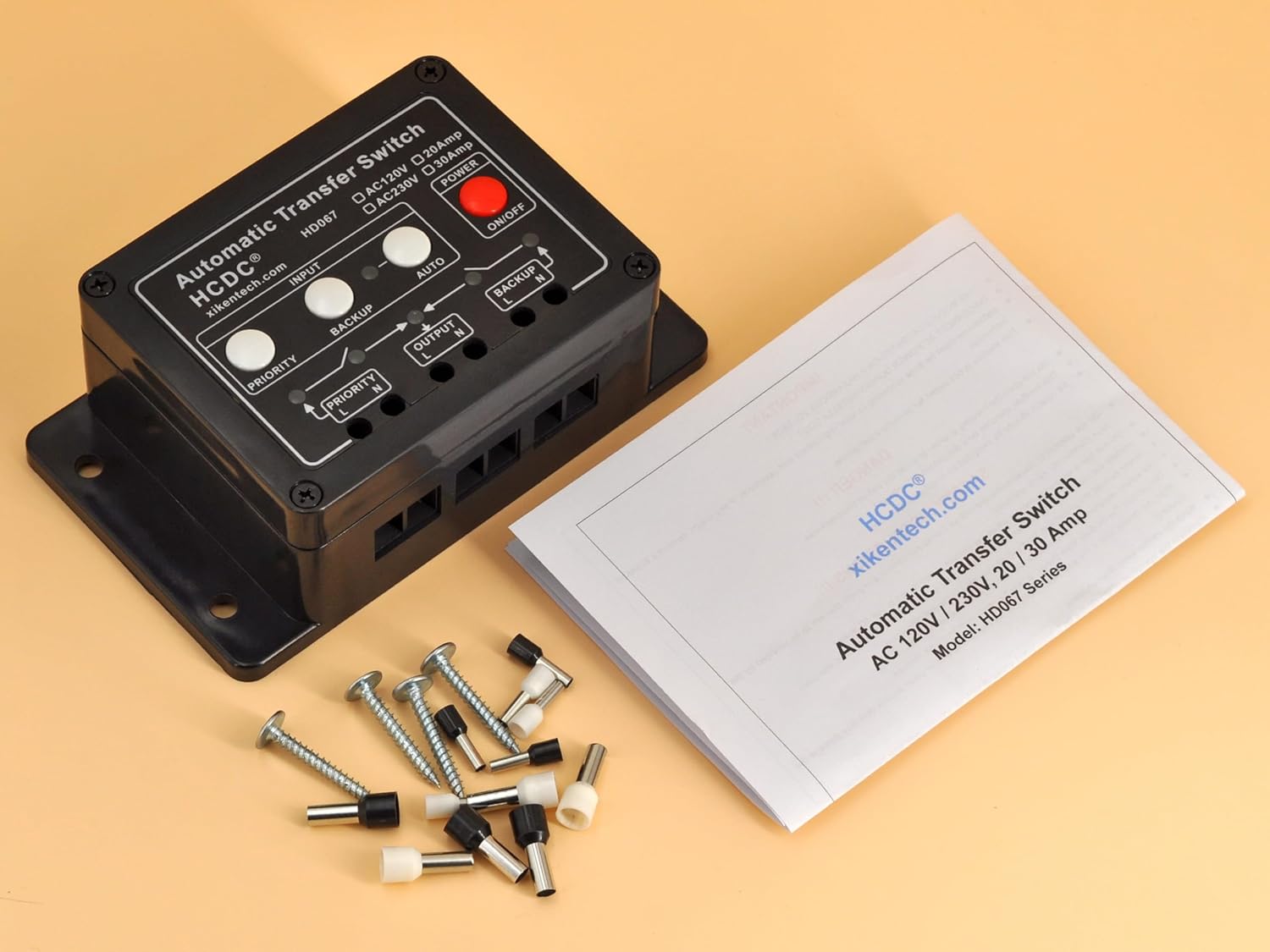

Automatic Transfer Switch, AC120V 30Amp, ATS Auto Transfer Switch, HCDC HD067/120V30A
4.3 (86 items)
Limited Time SaleUntil the end
02
01
29
US$59.40 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
Used US$39.60
Product details
| Management number | 210751584 | Release Date | 2026/04/02 | List Price | US$39.60 | Model Number | 210751584 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- HCDC HD067/120V30A Automatic transfer switch, voltage AC 120V, current 30 Amp. Select input source automatically or manually. With output on/off control function. With power-off memory function.
- In automatic mode (press the AUTO button), the automatic selection priorities are: 1 – PRIORITY, 2 - BACKUP. If you want to manually select an input source (manual mode), you can directly press button: PRIORITY or BACKUP. When you want to return to automatic mode, just click the AUTO button.
- Power ON/OFF control function: When you want to disconnect the load power, just click the ON/OFF button, it will immediately disconnect the live wire and the neutral wire at the same time, and all indicator LEDs will go out.
- Multiple indicator lights allow you to clearly see the product's input source status, output status, operating mode, and the status of the internal relay switch.
- It has a power-off memory function, and the next time it is powered on, it will return to the state before the power-off, which will not cause unpredictable consequences. The memory includes the operating mode, input source, and output switch status.
- Transfer time less than 30mS (usually around 15 mS), for most smart devices or computers, the switching action of 30mS time will not affect their normal operation.
- The live wire and neutral wire of each input source are controlled by different high-power SPST relays, ensuring that there will be no power arcing and no creepage between different input sources. The design is specially optimized to not cause your GFCI protector to trip for no reason.
| Model | HD067/120V30A |
|---|---|
| Terminal | Screw |
| Brand Name | HCDC |
| Unit Count | 1.0 Count |
| Switch Type | 4 Spst-no Relays |
| Circuit Type | 2-way |
| Contact Type | Normally Open |
| Manufacturer | Xiken Electronic Technology Co., Ltd. |
| Material Type | Plastic |
| Mounting Type | Wall Mount |
| Connector Type | Terminal Blocks |
| Control Method | Push Button |
| Current Rating | 30 Amps |
| Operation Mode | ON-OFF |
| Item Dimensions | 6.02 x 3.54 x 2.2 inches |
| Number of Items | 1 |
| Contact Material | Brass |
| Operating Voltage | 120 Volts (AC) |
| Included Components | Automatic Transfer Switch Module |
| Number of Positions | 2 |
| Upper Temperature Rating | 65 Degrees Celsius |
