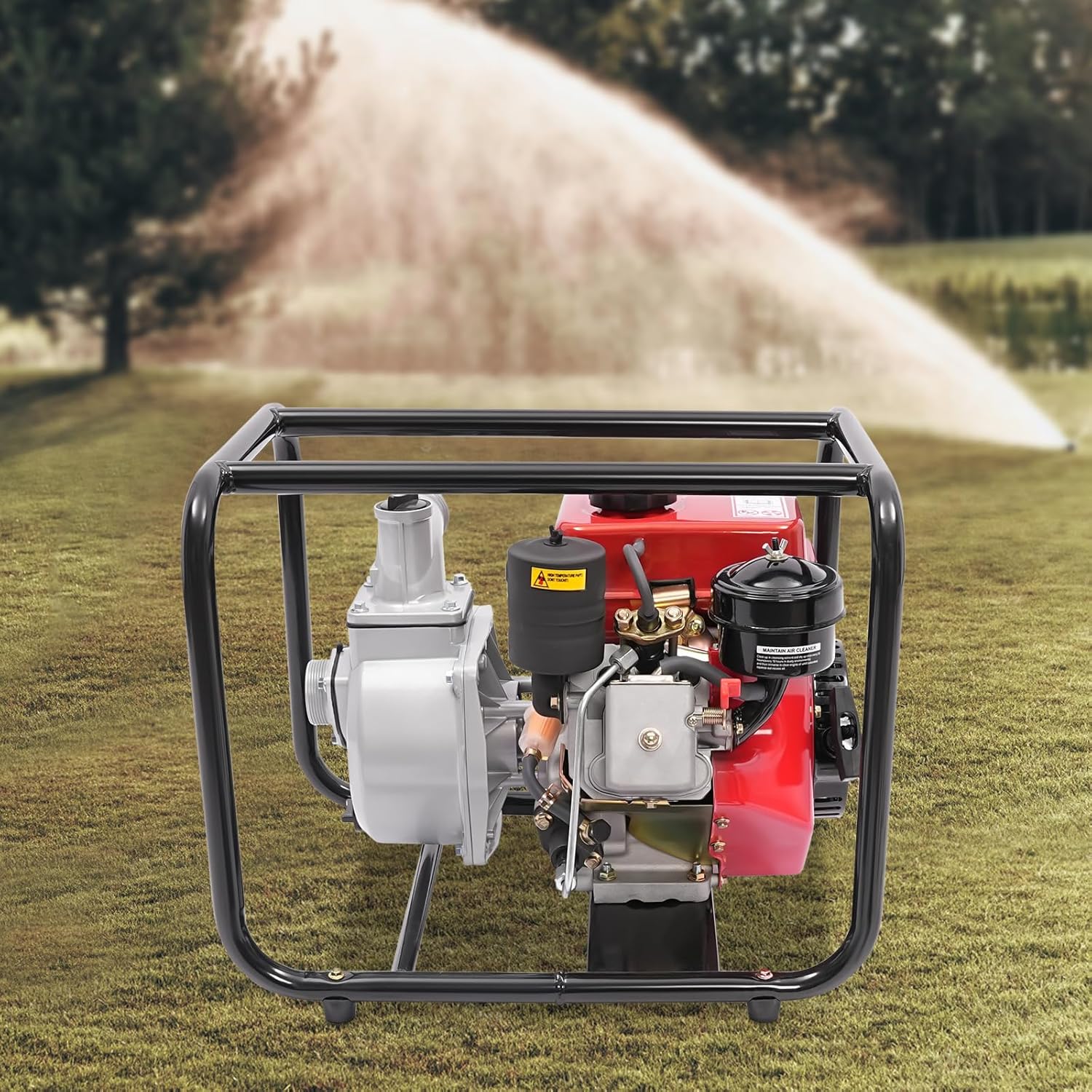

Diesel Water Pump, 3-inch 4 Stroke 196CC Diesel Engine Water Pump 3600RPM 22.97ft Suction 85.3ft Lift Portable Trash Water Transfer Pump w/Water Pipe for Irrigation Pool (Red)

DescriptionThis water pump is precision cast from high-grade aluminum, and its excellent resistance to pressure and corrosion ensures that the product remains stable and less prone to deformation in extreme environments. The high power of 2.3kw and 3600rpm allows for quick pumping of water from rivers or reservoirs, providing plenty of power to achieve high head irrigation in your garden or farm. The filter reduces impurities in the water, preventing the machine from clogging and prolonging its life. It will be a good assistant for your irrigation work.ApplicationIt can be used in vegetable garden and flower garden pumping and irrigation, field pumping and drainage work, and so on. It can be used in river ponds, reservoirs, rivers, and other water-lifting projects.How to OperateⅠ. Lay the machine flat and fill it with oil, just enough to have oil dripping out(too much/too little oil will affect operation).Ⅱ. Add 0# diesel fuel.Ⅲ. Fill the pump head section with water just until there is water overflowing from the spout.Ⅹ. Twist the red switch (turn to ON position).Ⅴ. ①Adjust the throttle switch to the left.② Adjust the air vent to the left.③Adjust the oil switch to the right.Ⅵ. Pull a small section of the pull disc line out first, and then pull the pull disc quickly to start the machine.Ⅶ. Connect the water inlet pipe.Ⅷ. Connect the water outlet.SpecificationsModel: 168FColor: Black, OrangeAssembly Required: Yes Style: ModernMaterial: Aluminum Process: Die-castingEngine Type: Four-stroke, Air Cooling, Single-cylinderPower Source: Diesel-poweredIgnition Mode: Compression IgnitionStarting Method: Hand-pull start (It can be Changed to Electric Start)Fuel Type: 0#Displacement: 196CCFuel Tank Capacity: 4L/1.06GalFull Fuel Running Time: 2HLubrication Way: Splash LubricationLubricating Oil Capacity: 0.8L/0.21GalLubricant Type: 10w40Engine Power: 2.3 kWSpeed: 3600rpmMax Suction Lift: 7m/22.97ftMax Lift: 26m/85.3ftMax Flow: 40 m³/h Noise: 75dBInlet/Outlet Diameter: 7.6cm/3in Water Pipe Length: 7.5m/24.61ftProduct Size: 51.5*39.5*42.5cm/20.28*15.55*16.73in Gross Weight: 34.68kg/76.46lbsNet Weight: 30.44kg/67.11lbsPackage Size: 52*41*44.5cm/20.47*16.14*17.52inPackage Included1*Water Pump1*Water Pipe1*English&German&French&Portuguese ManualAll Accessories for Assembly

• High Efficiency: The powerful 2.3KW engine with a displacement of 196cc makes the rotational speed up to 3600rpm and the flow rate up to 40 m³/h, which can quickly pump water from rivers or ponds. With a suction height of 22.97ft and a total lift height of 85.3ft, which allows you to irrigate your farmland effortlessly and increase efficiency.

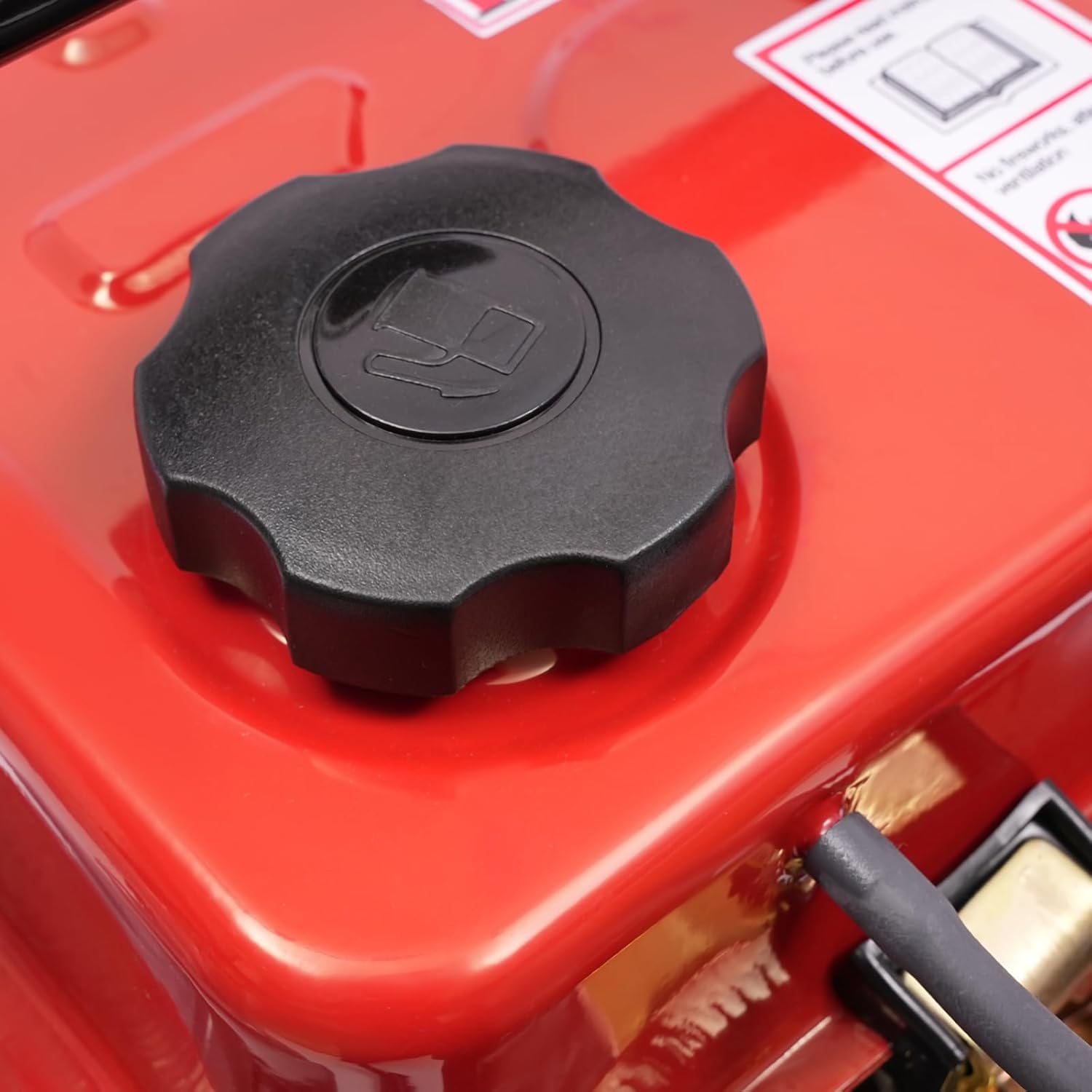

• Large Capacity: The fuel tank has a capacity of 1.06 gal and can be operated for 2 hours after refueling, avoiding the burden of frequent refueling.
• Powerful Pumping Tool: Whether you're looking for a solution for industrial or farm water supply, this pump is a trusted choice. It serves as a garden water source as well as a sprinkler for the kids. You can use this product to pump water from ponds, reservoirs, rivers, and other water-lifting projects.
• Customer-friendly Design: The pump comes with a 24.61ft long water pipe, which not only serves as a link between the water source and the destination, ensuring efficient and stable water transfer but also saves you money by avoiding the burden of buying it separately.
• Excellent Heat Dissipation: There are many heat dissipation holes on the surface of the product, which can dissipate heat quickly and prevent the engine from burning after a long time of use.
