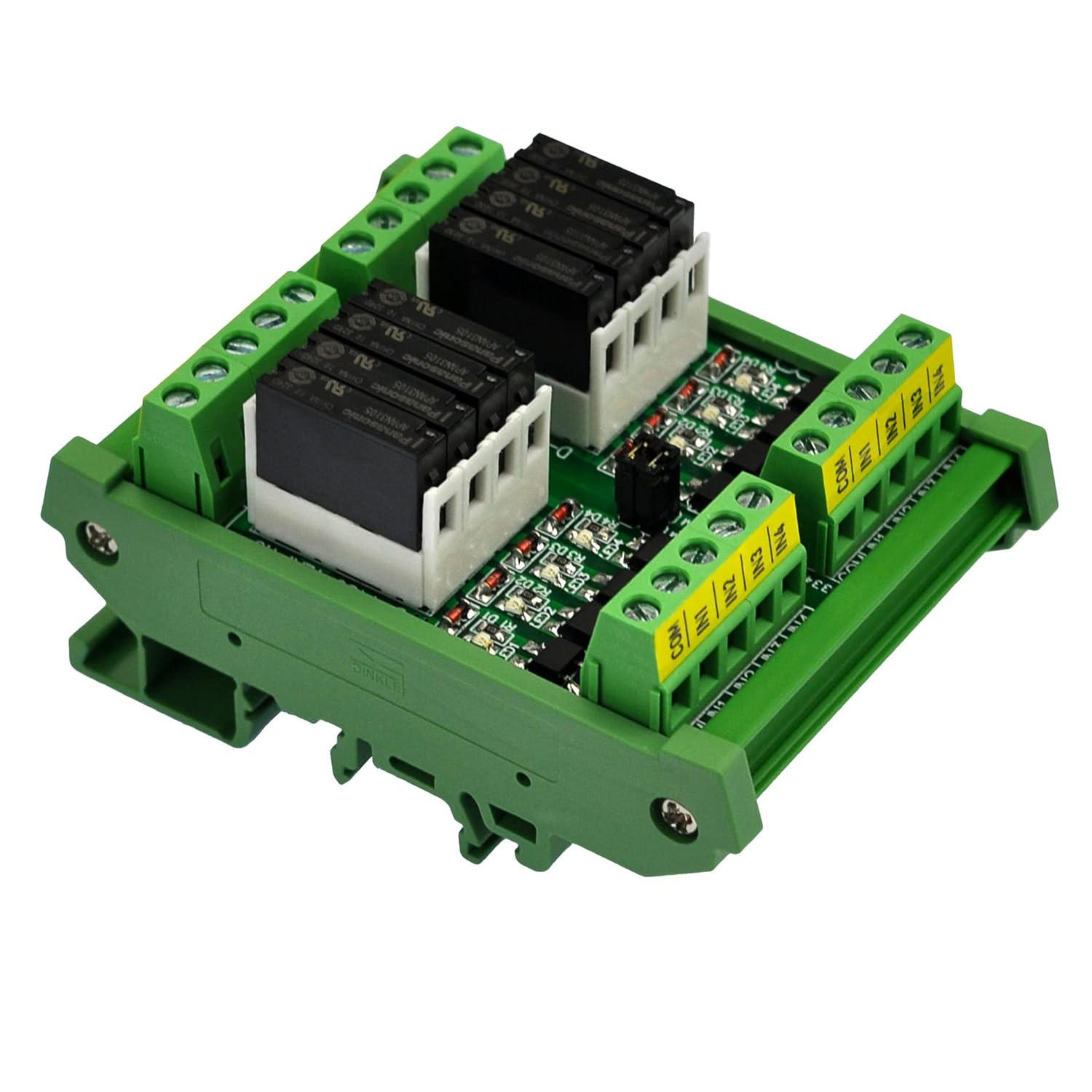

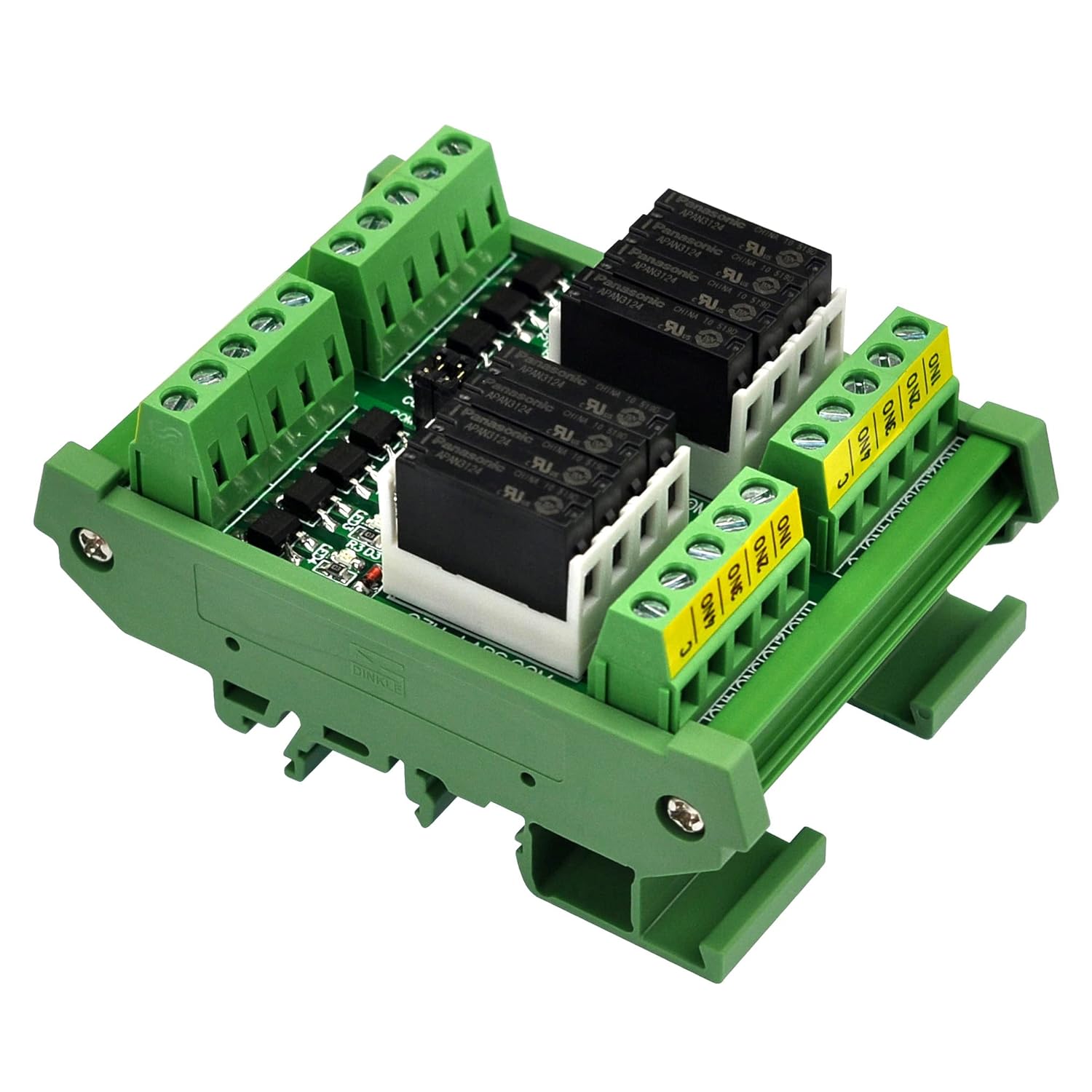

DIN Rail Mount AC/DC 5V 12V 24V SPST-NO 5Amp Power Relay Module (AC/DC 24V, 8 Channels)
4.6 (75 items)
Limited Time SaleUS$28.20 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211059012 | Release Date | 2026/04/04 | List Price | US$18.80 | Model Number | 211059012 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
1, Original Panasonic APAN3105, APAN3112 or APAN3124 relay, with removal key, easy to replace pluggable relay. Relay switch type SPST-NO(when the relay no action switch status off). Switching current up to 5Amp/250V or 5Amp/30VDC. 2, Users can flexibly configured control signal mode according to controllers output, can support DC Common Positive(for NPN / Sink output controllers), DC Common Negative(for PNP/Source output controllers) or AC 50/60 Hz Signal. LED indicator for each relay channel. Relay coil protection by means of a freewheeling diode. 3, Operating voltage 5V / 12V / 24V versions selectable. Relay number 4 / 8 / 16 / 24 / 32 channels to selectable. 4, High quality terminal block: Pitch 5.0mm/0.197 inch, Wire range 28AWG ~ 12AWG / 2.5mm square, Strip length 7mm. Screws - M2.5,steel, Cr3+ Zn plated. Pin header and Cage - Brass. 5, High quality DIN rail mount carrier, fireproof nylon material (not China low quality carrier), can support width 35mm / 32mm / 15mm rail. FR-4 fiber glass dual layers PCB.
- Original Panasonic APAN3105, APAN3112 or APAN3124 relay, with removal key, easy to replace pluggable relay. Relay switch type SPST-NO(when the relay no action switch status off). Switching current up to 5Amp/250V or 5Amp/30VDC.
- Users can flexibly configured control signal mode according to controllers output, can support DC Common Positive(for NPN / Sink output controllers), DC Common Negative(for PNP/Source output controllers) or AC 50/60 Hz Signal. LED indicator for each relay channel. Relay coil protection by means of a freewheeling diode.
- Operating voltage 5V / 12V / 24V versions selectable. Relay number 4 / 8 / 16 / 24 / 32 channels to selectable.
- High quality terminal block: Pitch 5.0mm/0.197", Wire range 28AWG ~ 12AWG / 2.5mm square, Strip length 7mm. Screws - M2.5,steel,Cr3+ Zn plated. Pin header and Cage - Brass.
- High quality DIN rail mount carrier, fireproof nylon material (not China low quality carrier), can support width 35mm / 32mm / 15mm rail. FR-4 fiber glass dual layers PCB.
| Model | D-1456T Series |
|---|---|
| Wattage | 115 watts |
| Brand Name | OONO |
| Part Number | D-1456T Series |
| Coil Voltage | 24 Volts |
| Contact Type | Normally Open |
| Manufacturer | CZH-LABS |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw |
| Current Rating | 5 Amps |
| Operation Mode | Off |
| Coil Resistance | 5 Ohms |
| Contact Material | Silver |
| Specification Met | Din |
| Contact Current Rating | 5 Amps |
| Maximum Switching Current | 5 Amps |
| Minimum Switching Voltage | 5 Volts (DC) |
