Ladder Chopin Fully Balanced HiFi Preamplifier R-2R Structure Stable Output Amplifier RCA XLR (Black)

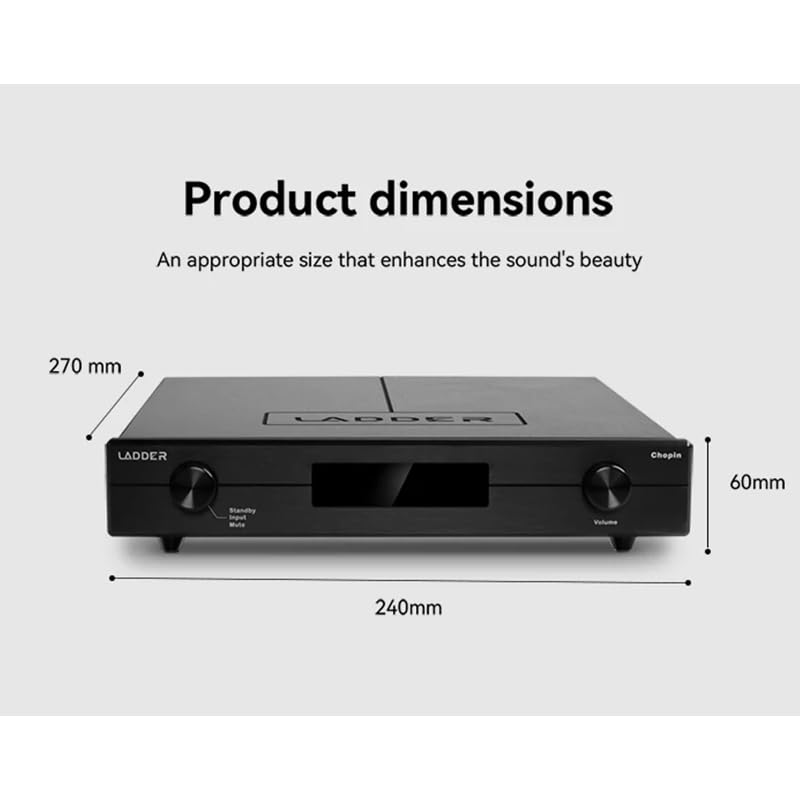

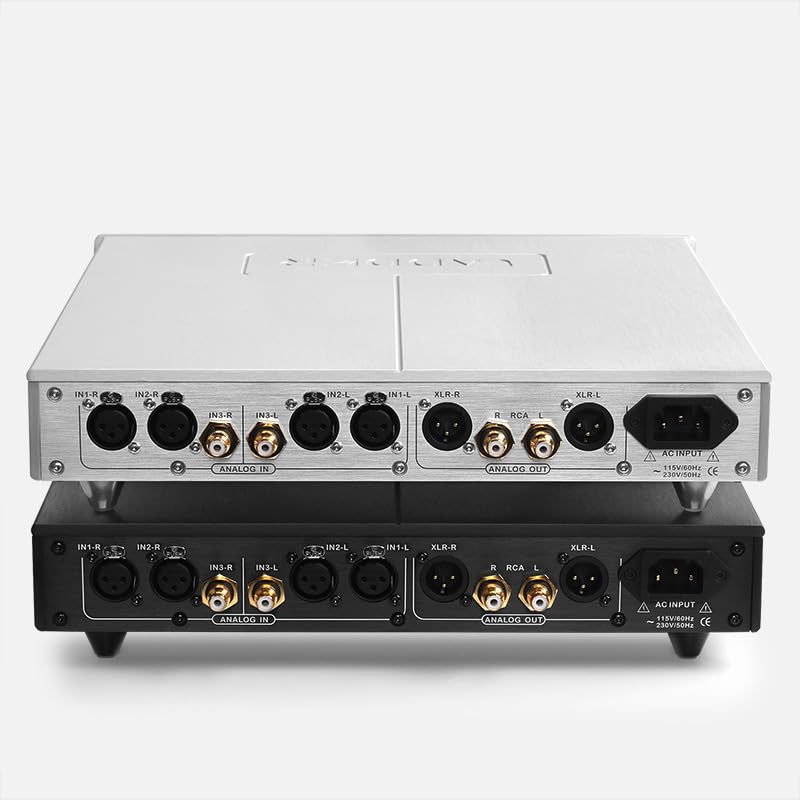

Product Overview Product Name:Chopin Product Material:Aluminum Alloy Appearance Color:Silver / Black Net Weight:6.5kg Gross Weight:9.7kg Power:1W (ldle), 20w (Operational) Technical Highlights: Pure Class-A, True Balanced, Fully Discrete Line Stage 60 Steps Microprocessor Controlled Relay Based Stepped Attenuator Precision Matched Resistors & Components with Perfect Channel Balance And Low Distortion Remote Controlled. Dimensions: 320mmX330mmX60mm 450mmX380mmX160mm Description: Input:IN1-XLR IN2-XLR IN3-RCA Input impedance: Single-Ended 12.2K Ohms Balanced - 60K Ohms Output: RCA at 2.0Vrms XLR at 4.0Vrms Output lmpedance:Single-Ended 200 Ohms Balanced - 400 Ohms Gain:Unity Gain,0dB AC Power Requirement:100-240VAC，50/60Hz(Worldwide Voltage) Frequency Response: 10-80k(-0.3dB) THD+N:0.00% S/N Ratio:120dB Dynamic Range>121dB Stereo Crosstalk:-110dB Warranty:12months

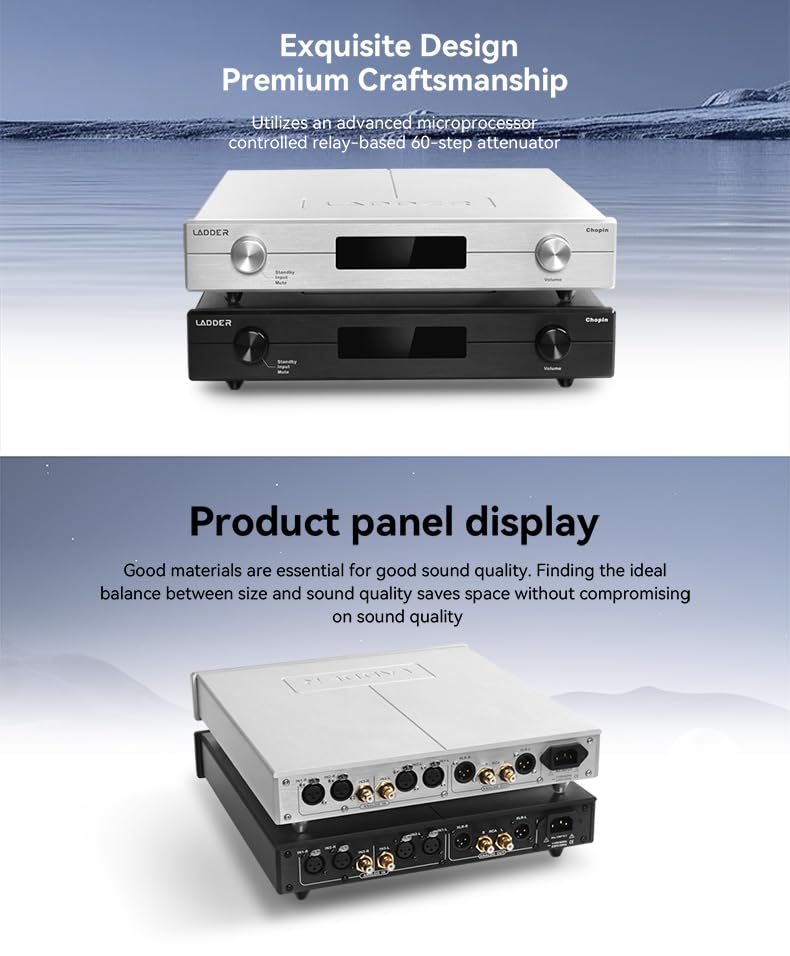

• 【Exquisite Design Premium Craftsmanship】 Ultilizes an advanced microprocessor controlled relay-based 60-step attenuator
• 【Product panel display】 Good materials are essential for good sound quality. Finding the ideal balance between size and sound quality saves space without compromising on sound quality.

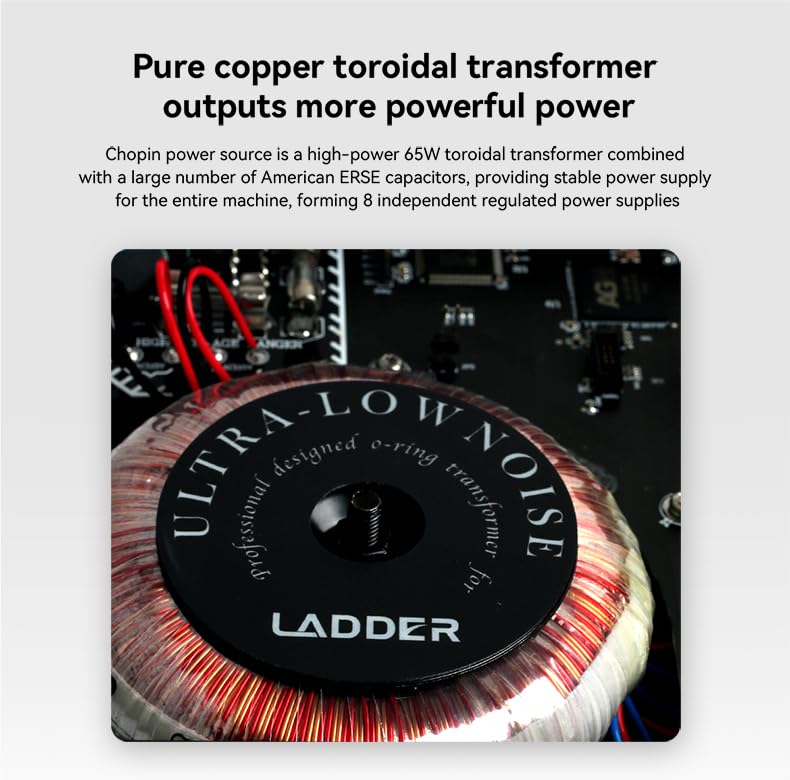

• 【Pure copper toroidal transformer outputs more powerful power】 Chopin power source is a high-power 65W toroidal transformer combined with a large number of American ERSE capacitors, providing stable power supply for the entire machine, forming 8 independent regulated power supplies

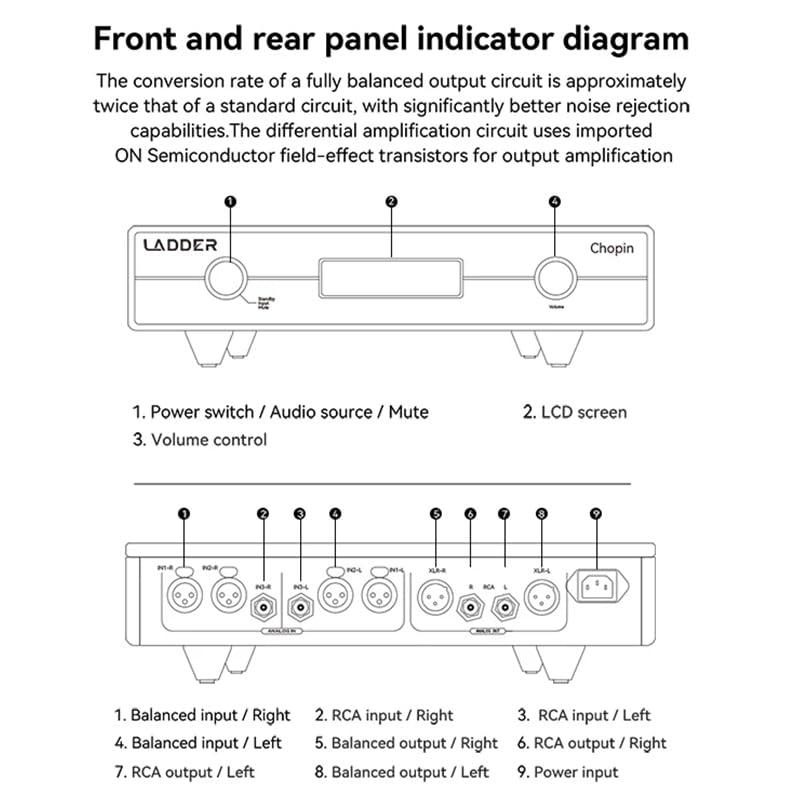

• 【Rich interfaces】 The conversion rate of a fully balanced output circuit is approximately twice that of a standard circuit, with significantly better noise rejection capabilities.The differential amplification circuit uses imported ON Semiconductor field-effect transistors for output amplification
