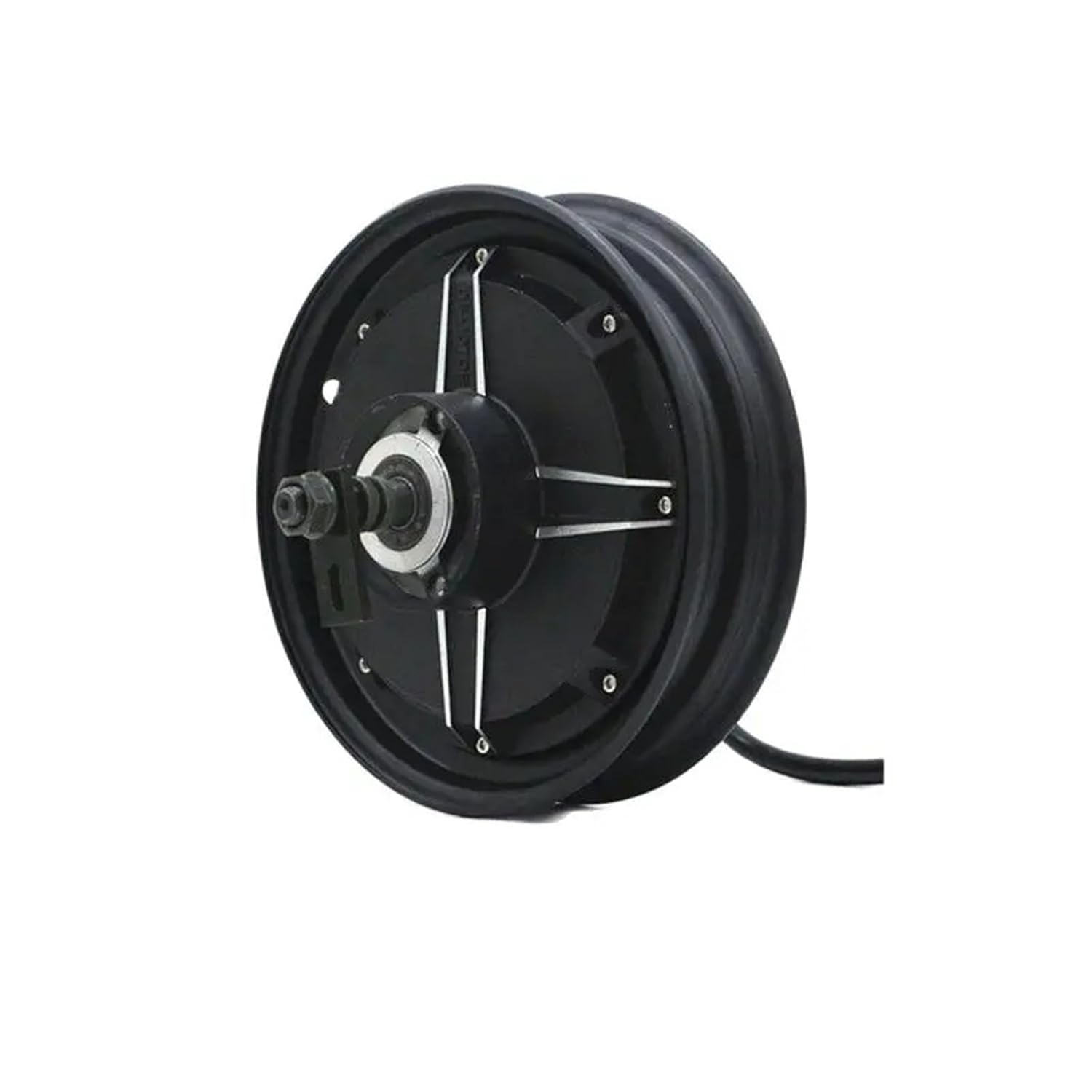

QS205 10inch 4000W Hub Motor V3 Type Compatible with Elecrtric Scooter Max. Speed 100kph

QS205 10inch 4000W V3Electric Hub Motor specially designed Compatible With electric scooters, max speed can be customized to 100km/hMotor Specification:1.Motor Type: BLDC Hub Motor with Permanent Manget2.Motor design: Double axle out with 10inch rim3.Rim size:2.15-104.Matached Tire: 3.0-10, 3.5-105.Magnet Height: 55MM6.Pole Pairs: 16 pairs(32pcs curved magnets)7.Rated Power:4000W8.Peak Power: 7000W9.Rated Voltage: 72V10.Speed: 90-100km/h11.Max No-load RPM: 1400RPM12.Max Torque: 190N.M13.Max Efficiency: 90%14.Continious current:61A15.Max current:90A16.Brake type: Disc brake or Brum brake(Optional)17.Rear Fock width Compatible With installation: 200mm18.Winding holdermaterial: Aluminium19.Cross Section of Phase wire: 10 mm220.Hall sensor phasing angle: 120 degree21.Temperature Sensor: Optional22.Max. Working Temperature: 70 degree, Peak 120 degree23.WP Grade: IP6624.Color: Black 25.N.W./ G..W. : 15kgs / 16kgs26.Package Size: 34*34*33CMMotor structure:Motor Application:Motor drawing:Please read the follownotifications before you make the order on our store!Thank you very much!==========High-concerned chemical : NoneOther Part Number : 205Placement on Vehicle : REARCountry/Region of Manufacture : ChinaInterchange Part Number : 205Special Features : V3Item Weight : 16kgsItem Height : 200mmItem Width : 273mmItem Length : 273mmManufacturer Part Number : QS104000Origin : Mainland ChinaMaterial : AlloyMotor : DC MotorPlace of Origin : China (Mainland)Power : 4000WVoltage : 48V-72VWe’re so glad you’re here! Need help? Just message us – we’re happy to assist.

• Hub motor
• Direct drive, reduces energy loss.
• Regenerative braking, extends range.
• Eliminates transmission parts, saves space.
• Motor direct control, fast dynamic response.
• Independent wheel control, enhances handling.
